Passive Heart Rate Monitoring via Smartphone Camera: PHRM Validation and Release

June 4, 2026

Eric S. Teasley, Product Manager, and Ming-Zher Poh, Staff Research Scientist, Google Research

We present a research system that passively measures heart rate and resting heart rate via facial video captured by the front-facing camera during everyday smartphone use.

Heart rate (HR), one of the cardinal vital signs, is a dynamic indicator of physiological status, influenced by everything from activity, to stress, to acute and chronic illness. Further, resting heart rate (RHR) is a key biomarker of cardiovascular health and long-term health risk. A higher RHR and increases in RHR over time are associated with major adverse cardiovascular events and all-cause mortality.

Wearables, such as Fitbit devices and the Pixel Watch, have made it possible to track these health markers throughout our daily lives. However, there is room to improve their adoption, especially in low-resource environments and among those most at risk for cardiovascular disease. Smartphones present a unique opportunity to broaden access to health tracking — today, around five billion people already own a device with powerful sensors capable of monitoring their health. In 2022, we demonstrated using smartphones for on-demand HR measurement via a finger placed over the camera, and subsequent Google research considered how the signal detected during that measurement could help predict cardiovascular disease.

In “Passive Heart Rate Monitoring During Smartphone Use in Everyday Life”, published in Nature, we introduce a research system (PHRM) that enables tracking of HR and RHR in the background during everyday smartphone use. PHRM leverages the front-facing camera to capture video of the user’s face in the seconds after face unlock events. It then applies deep learning to estimate HR with a mean absolute percentage error (MAPE) < 10% compared to electrocardiogram-derived ground truth, meeting industry accuracy standards for people of all skin tones. Finally, the system integrates HR measurements throughout the day into an estimate of daily RHR that matches the accuracy of wearables, with a mean absolute error (MAE) of < 5 beats per minute (bpm) compared to a wearable tracker. With our publication, we release the largest and most diverse dataset of smartphone videos publicly available for research along with a pre-trained “PHRM-mini” model. Qualified researchers can apply for access.

Like wearables, pulse oximeters, and our previous work, PHRM measures HR via photoplethysmography (PPG), i.e., by sensing the fluctuation in how light interacts with the skin each time blood pulses through it. We developed an on-device software pipeline that processes 8-second facial video clips and uses computationally-efficient temporal shift convolutional neural networks to predict HR along with a confidence score. The pipeline further aggregates HR predictions over the day and leverages confidence scores and Kalman filtering to estimate a daily RHR.

PHRM’s pipeline for estimating HR and daily RHR from clips of a user’s face.

While computer vision models for such “remote” PPG (rPPG) have existed for two decades, previous work involved smaller studies under controlled conditions, limiting generalizability. Additionally, previous studies vastly underrepresented people with dark skin, in whom melanin makes the PPG signal more challenging for cameras to detect. Only recently have researchers investigated rPPG model performance on dark-skinned study participants more thoroughly, finding significantly lower accuracy — a trajectory similar to what has occurred for pulse oximeters and other PPG-based technologies. The concerns about pulse oximeters spurred the FDA to draft guidance to ensure diverse skin tone representation in validation studies. Thus far, there is a lack of studies of rPPG that achieve similar standards.

We developed PHRM using over 350,000 video clips from nearly 700 diverse consented research participants in both laboratory and real-world settings, and we devoted more model training to the most challenging cases, as in our earlier work. We leveraged colorimetric methods and the Monk Skin Tone scale to ensure that participants with light (“Group 1,” Monk 1-4) and medium (“Group 2,” Monk 5-7) skin each comprised at least 25% of our datasets and that participants with dark (“Group 3,” Monk 8-10) skin comprised at least 33%. This sampling approach aligned with the skin tone cohorts later proposed by the FDA. Going further, with support from Google’s Health Optimization team, we developed a non-inferiority criterion stipulating that PHRM’s MAPE for HR for each group must differ from that of the others by < 5 percentage points. These efforts make our study of PHRM the largest and most diverse rPPG study to date and enabled us to develop inclusive models that perform accurately across the skin tone spectrum.

We trained PHRM to handle varied conditions in laboratory studies, recording face video and simultaneous electrocardiogram (ECG) data from 365 diverse study participants across different lighting conditions and activity states. On a separate 104-participant test set, after gating with a minimum confidence score, PHRM achieved MAPEs significantly < 10% across skin tone groups despite the range of conditions we tested. PHRM significantly outperformed 15 of the leading published rPPG models on the same test set, both before and after gating, and was the only model to achieve MAPE < 10% across all skin tones.

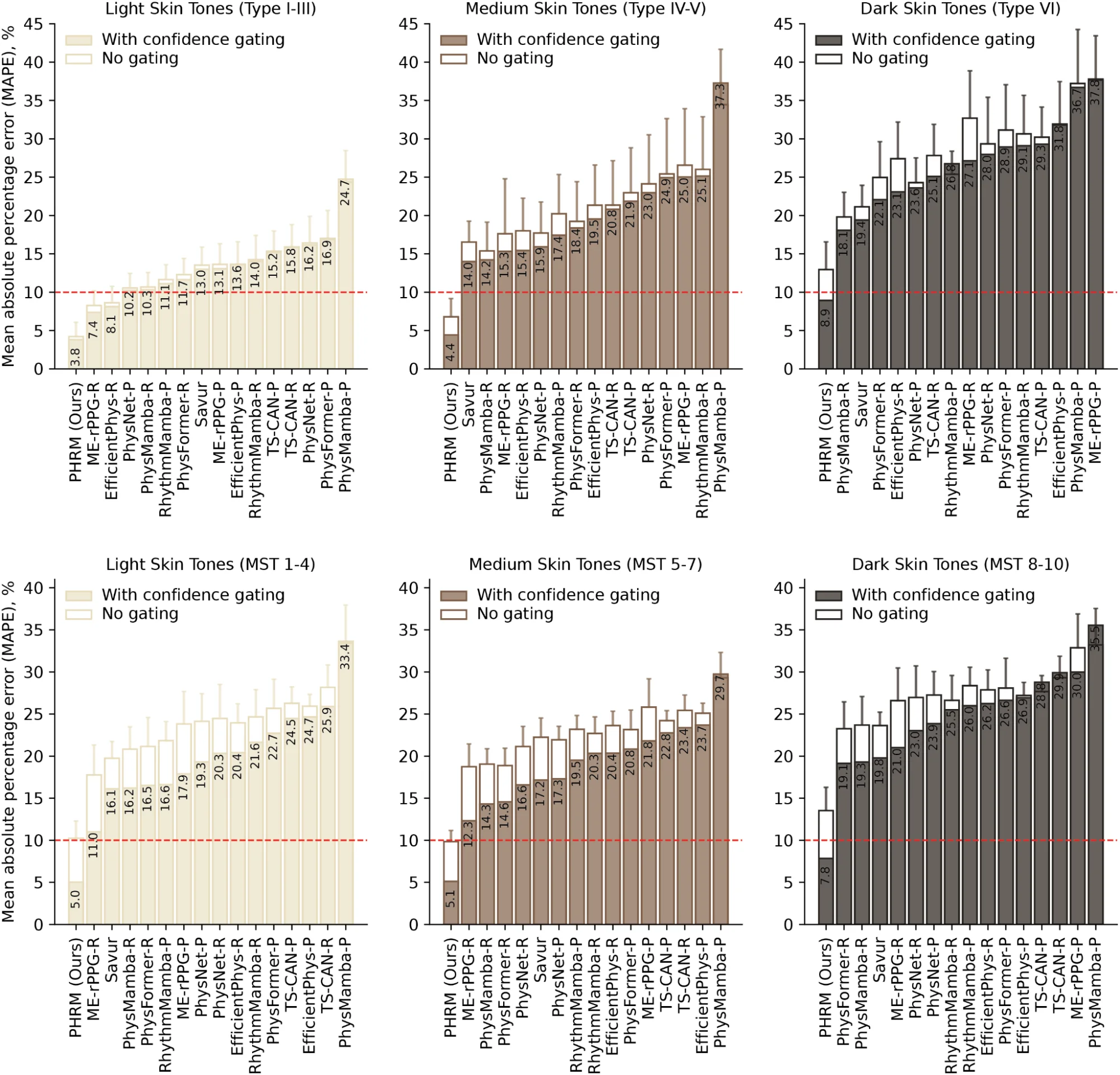

HR accuracy of PHRM and state-of-the-art rPPG methods under (top) diverse laboratory conditions and (bottom) free-living conditions. Filled bars indicate MAPE after PHRM confidence gating; empty bars indicate MAPE without gating. The red dashed line indicates the pre-specified target of MAPE < 10%. Error bars indicate upper 95% confidence intervals.

To train PHRM on real-world data, we conducted a first-of-its-kind “free-living” study. 231 diverse study participants installed a custom data collection app on their personal phones and used them as normal for eight days while wearing an ECG chest strap and a Fitbit Charge 6 fitness tracker. Our app recorded 8-second video clips and ECG data immediately after each face unlock, capturing an average of 231 clips per day. At the end of each day, participants manually and affirmatively authorized uploads to our secure, encrypted servers after reviewing their clips to confirm exclusion of sensitive content and other faces.

PHRM captured videos from a diversity of participants and real-world conditions during our free-living study. Faces masked for privacy.

On a held-out 101-participant validation subset, PHRM achieved an overall MAPE of 6.09% after confidence gating, with MAPEs of 5.04%, 5.12%, and 7.84% for Groups 1, 2, and 3, respectively. Each MAPE was significantly < 10% and met our pre-specified non-inferiority target. PHRM outperformed the same 15 leading rPPG models by an even wider margin under free-living conditions and remained the only model to achieve MAPE < 10% across all skin tones. Bland-Altman analysis showed that PHRM underestimated HR by only 0.64 bpm on average, with 95% limits of agreement between -11.3 and 10.3 bpm; measures with higher confidence scores had lower errors.

Left: Bland-Altman plot showing the agreement between PHRM-estimated and ECG-derived HR during the free-living study. Colors indicate PHRM prediction confidence. Dashed lines show the bias, lower, and upper limits of agreement. Right: PHRM HR accuracy across skin tones. Boxplots show the MAPE for each participant. Boxes bound the interquartile range (IQR) divided by the median. Whiskers extend to 1.5 × IQR beyond the box. Dots beyond the whiskers represent outliers. The red dashed line indicates the pre-specified target of MAPE < 10%.

We then applied PHRM’s RHR algorithm for participants who had at least 20 HR measurements on one or more days. For those 90 participants, PHRM successfully estimated RHR on 73.6% of the participant-days. PHRM RHR demonstrated an overall MAE of 4.39 bpm versus daily RHR from the Fitbit Charge 6, significantly less than our pre-specified 5-bpm target. Bland-Altman analysis showed that PHRM underestimated RHR by an average of 0.1 bpm, with 95% limits of agreement between -9.1 and 9.2 bpm; error decreased with increasing days of RHR measurements. The MAEs by skin tone group were significantly < 5 bpm for all but Group 3. However, MAE for all groups decreased over time as our RHR algorithm’s Kalman filter converged — Group 3’s MAE was significantly < 5 bpm from day three onwards.

Left: Bland-Altman plot showing the agreement between PHRM- and wearable-estimated daily RHR. Colors indicate day number since the start of RHR estimates. Dashed lines show the bias, lower, and upper limits of agreement. Right: PHRM RHR accuracy as a function of day number. Shaded areas indicate 95% confidence intervals. The red dashed line indicates the pre-specified target of MAE < 5 bpm.

In confirming the validity of our approach, we further found that participants with higher PHRM-derived RHRs were more likely to have high body mass index (BMI) and poor cardiovascular fitness (low VO2max) after controlling for covariates, indicating that PHRM correctly captured the directionality of cardiovascular risk.

To our knowledge, PHRM marks the first large-scale demonstration of passive HR and daily RHR monitoring during everyday smartphone use. As the only rPPG method to meet HR accuracy standards for people of all skin tones — even in unpredictable real-world conditions — it sets a new standard for the field. It also represents the first use of rPPG to estimate daily RHR, achieving wearable-level accuracy across all skin tones. By combining an understanding of user habits with cutting-edge deep learning techniques and an inclusive design, we’ve developed a smartphone-based HR monitoring system that enables wearable-like heart health insights. As such, PHRM presents the opportunity to democratize the benefits of heart health tracking through our most ubiquitous devices. More broadly, it demonstrates how the devices we consult so frequently can in turn reflect insights into our health.

While PHRM met accuracy standards across skin tones, its HR measurement success rate was lower for Group 2 and lowest for Group 3, likely due to the difficulty of detecting the PPG signal in darker skin. Future efforts could explore optimizing camera exposure or triggering additional sampling attempts to improve measurement success rates. We additionally observed some outlier errors driven by participant talking and head motion. Improved video stabilization could mitigate these errors, and accelerometer-based gating could help to prioritize opportune at-rest moments. Finally, future systems could ensure data integrity and privacy by requiring face authentication and employing secure, on-device processing.

To catalyze further research, we are making our landmark data and modeling resources available to qualified researchers who possess Institutional Review Board (IRB) approval and meet our data protection requirements. To protect research participant privacy, all videos were collected under IRB approval and were processed according to explicit participant consent. This dataset is restricted entirely to non-commercial research use, and accessing researchers are strictly prohibited from attempting to re-identify any individuals or publicly displaying raw video assets. We invite the research community to leverage our resources to build on our work.
